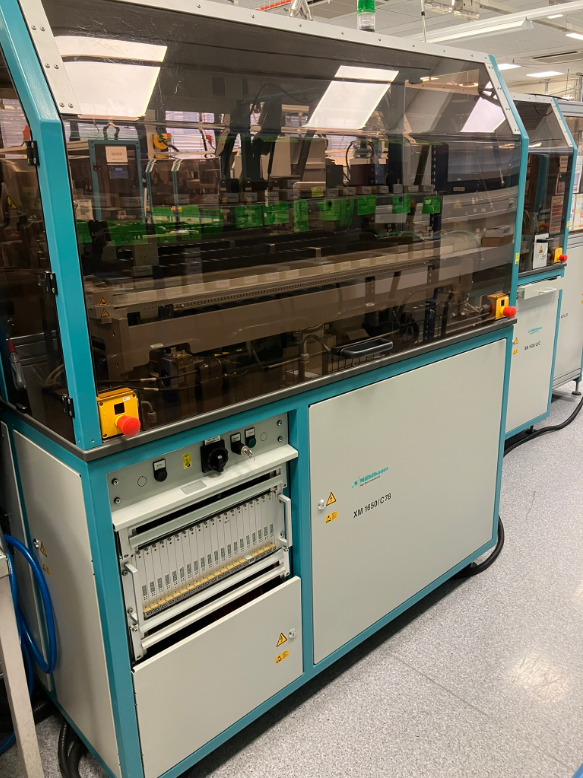

SCP 5700 High Speed Personalization

SCP 5700 High Speed Personalization Complete machine as a source for spare parts

Year of manufacture: ...2008
Number of cards (cards): 71.000.000
Availability: ..............December 2024
Condition: .......................Good, Functional
Manufacturer: .....................Mühlbauer
---------------------------------------------------
SYSTEM CONFIGURATION

1.1 Card input unit
- Maximum capacity = 10 card stackers (up to 500 cards each)

1.2 Encoding unit
- 78 contact chip encoding stations (8 contact pins per position)

1.3 Laser unit
- 2 lines with
-- 1 laser each (ROFIN Powerline 20F, >18W, 20 to 80 kHz, 1064 nm)
-- 1 vision station each (OCV and barcode inspection)
-- 2 card turning stations each

1.4 card output unit
- Maximum capacity = 4 card stackers (up to 500 cards each)

1.5 Machine performance and status
- Double card detection
- Throughput: up to 6000 UPH (maximum transfer speed)
- Improved reject sorting mechanism
- The system is fully serviced and ready for operation until 2024
- Numerous original spare parts are available
- Optional modules/parts can be sold separately
