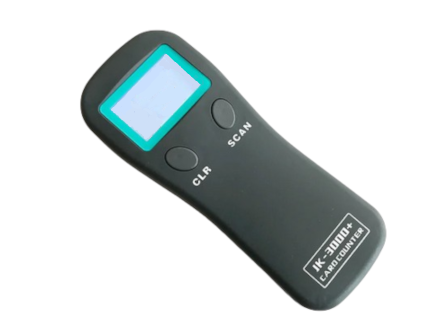

YC-3000 card counter with metal housing

OEM item number: YC-3000 JK3000+ handheld card counter is a newly developed handheld digital card reader. Based on the new handheld card reader design, a high-speed processor, a high-precision optical sensor, and a sophisticated logic analysis circuit are carefully designed and manufactured to achieve high-speed and efficient card counting.
JK3000+ handheld card counter can count PVC cards, embossed cards, chip cards, PET material cards, ABS material cards, etc. with more than 0.45mm.
JK3000+ handheld card counter is applicable to various manufacturers or institutions that manufacture or issue credit cards, savings cards, smart cards, second-generation cards, membership cards, concession cards, phone cards, and so on.


Product performance
Ø This product has a double check function. When the number of cards counted by two digital card counting laser tubes is the same,
the screen will display the correct number of cards.
Ø Accuracy: With the correct placement of the card, the accuracy of the card can reach 99%.
Ø Accumulated capacity: You can directly add 1-99999 sheets.
Ø Support Chinese and English, multiple card mode switching. (standard card, thin card, embossed card)
Ø 30 seconds automatically enters the energy saving state.
Ø Use the latest TYPE-C charging interface.
Ø ABS wear-resistant plastic casing is used.

Technical Parameters:

1. power supply requirements: 3.7V / 2000mAh
2. working current: <80mA
3. standby current: <40UA
4. working environment: Temperature 10 ~ 40 ° C
5. humidity: 30% RH ~ 90% RH
6. maximum accumulation: 9999 sheets
7. machine size: 160mm (d) x 66mm (w) x 30mm (h)
8. machine weight: 180g
